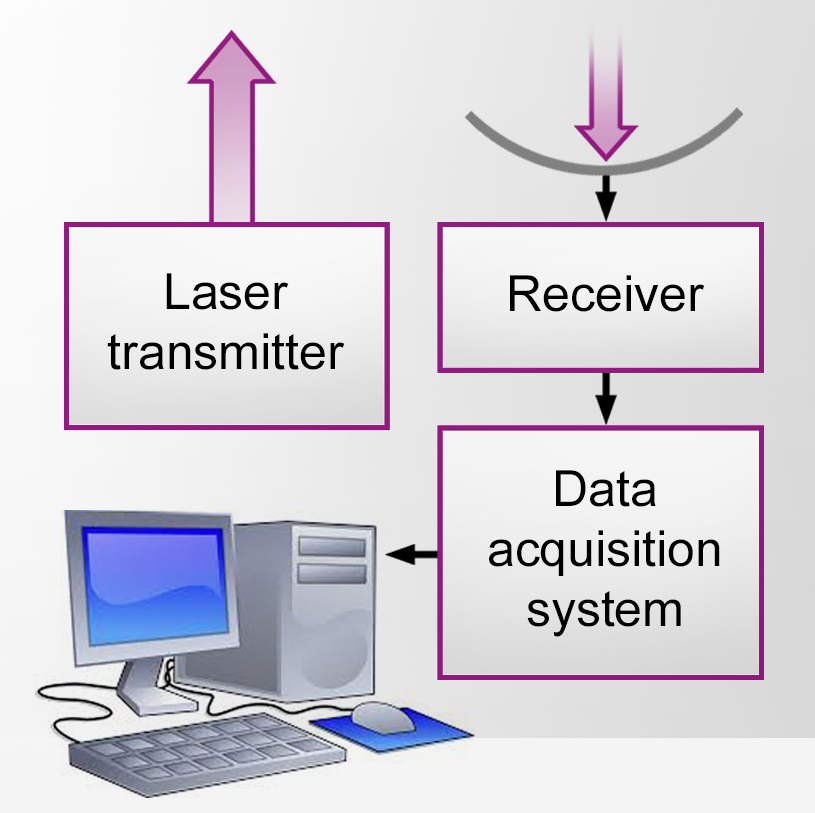

How does it work?

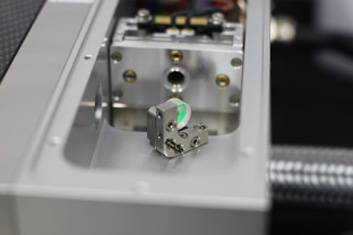

    •   Fully-diode laser pumped laser transmitter with extraordinary stability, lifetime, and average power

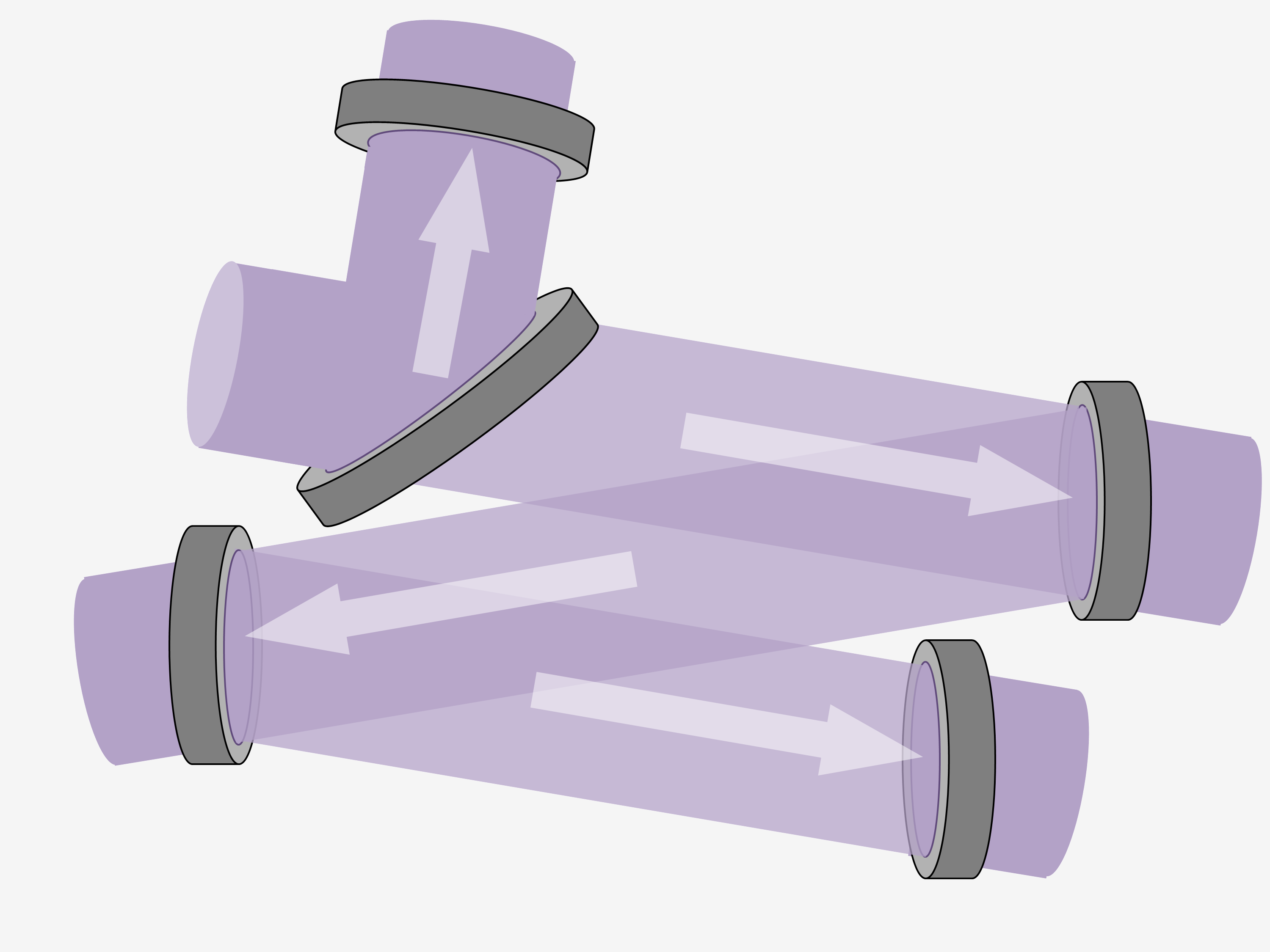

    •   Extremely stable and efficient receiver featuring most recent advances in filter technology




    •   Low-noise, high-bandwith data acquisition system




    •   Real-time water-vapor and temperature profiles as well as aerosol and cloud parameters with error analyses

Unequaled resolution and accuracy of water-vapor and temperature profiles!

High resolutions of up to 1 s and 7.5 m

Temperature (T):
    Systematic error < 0.5 K
Water-vapor mixing ratio (WVMR):
    Systematic error < 5 %

T and WVMR profiles exceed WMO goal and breakthrough requirements*, respectively, for nowcasting/VSRF in the lower troposphere
*see OSCAR and
Purple Pulse Unique Performance


Only system capable of resolving temperature inversions, lids, and true atmospheric boundary layer depth

Diode-laser pumped eye-safe transmitter with extraordinary lifetime and low maintenaince

Continuous vertical profiling and 3D scanning systems
